Product Description
Item: RH Door window (NON-OPENING) With Vent Window
for Make: Cessna
Approved for Models:
170B (sns 26996 thru 27169)
172, 172A, 172B (sns 28000 thru 17248181)
175, 175A, 175B (sns 55001 thru 17556927)
NOTE: Because this window is thicker than the original part Using Rubber U-Channel will make it difficult to install. Install with Sealent only or 3M 471 Vinyl Tape or similar may be used to protect the edge during installation.

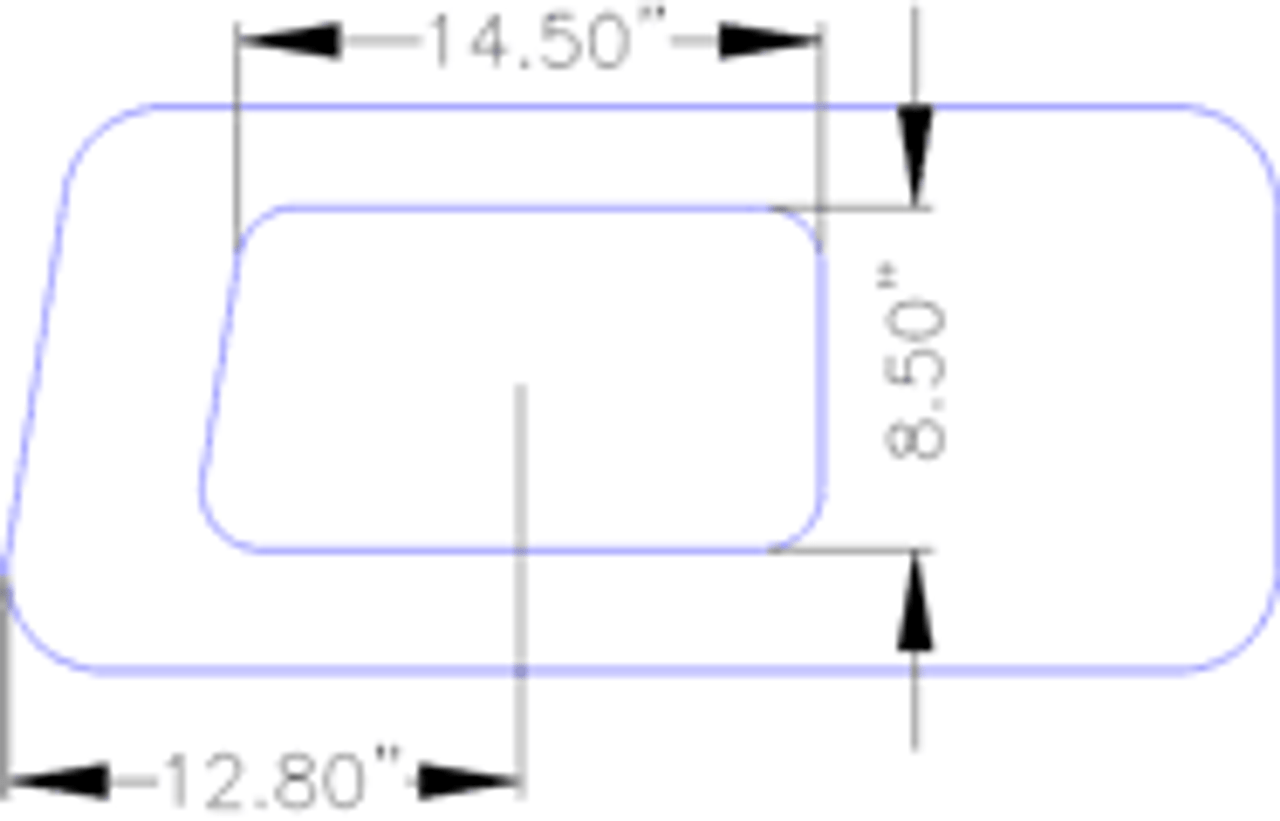

The Vent hole may be located further back on the window if desired, Specify below the location in INCHES to the CENTER of the hole. For example "12 Inches" would indicate 12" back from the front edge to the CENTER of the hole. If the field is blank then the vent location will be as in the drawing below. If you have any questions contact us.
